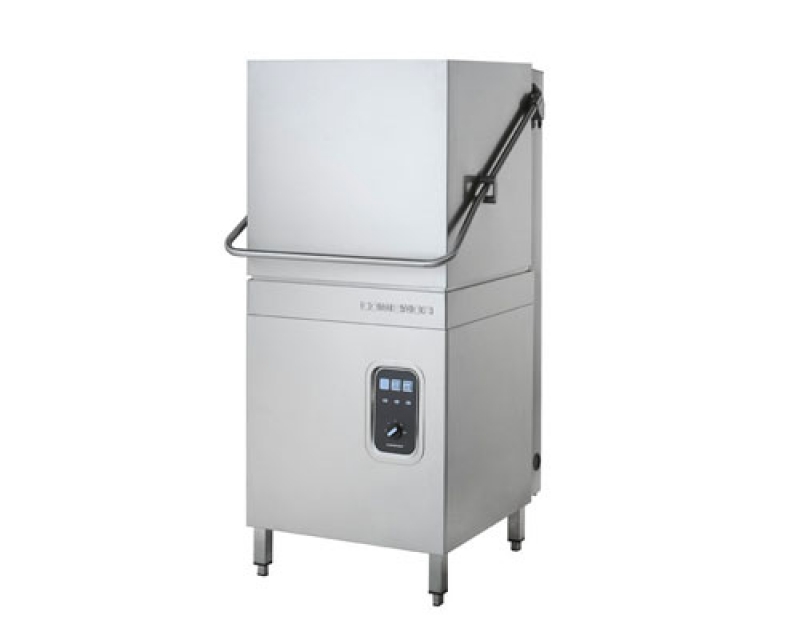

Field dedicated dishwasher wash system LC is a unified, fitted and installed with the wash table.
Constructed of stainless steel “AISI 304”
Deep sink is made of molding technology seamless.
Safe lock system to help users secure when operating the machine.
The thermostat.
Electromechanical control panel with easy to use help.
With a large capacity and ability to wash suitable for any kinds of cups, plates, cups, trays, pans, spoons, forks … so LC series are suitable for restaurants, hotels, hospitals and schools have a wash medium.
TECHNICAL INFORMATION
| Width ( mm ) | 625 |
| Depth ( mm ) | 760 |
| Heigh ( mm ) | 1460 |
| Basket size ( mm ) | 500 X 500 |
| Distance wash ( mm ) | 440 |
| Power Wash ( basket / hour ) | 65/42/30 |
| Electrical Power | 400V/3N/50Hz |
| Pump capacity ( kW ) | 1.1 |
| Wash Tank Capacity ( liter ) | 42 |
| The temperature wash / rinse ( oC ) | 60 – 85 oC |
| The amount of wash water / cycle ( liters ) | 4 |
| Security key | Yes |
| Auto hot water | Yes |
| Water resource use ( cold/warm ) | 15 – 55 oC |
| Mode wash | 3 |
| Noise ( class ) | 1 |
| Total power ( kW ) | 10.10 |
| Weight ( kg) | 130/140 |
